Looking for a budget BINOCULAR with PREMIUM functions?
*BONUS KOLIBRI x NGS Cordura Wrap - let us know, which one would you like
Let us present you the BNVD-31 Portable dual tubes NVD, which uses military PVS14 ocular lenses system with excellent images and little distortion. This device fits all kinds of 18mm IIT.
- Each POD can be rolled over 130° with auto shut down function when flipped up.

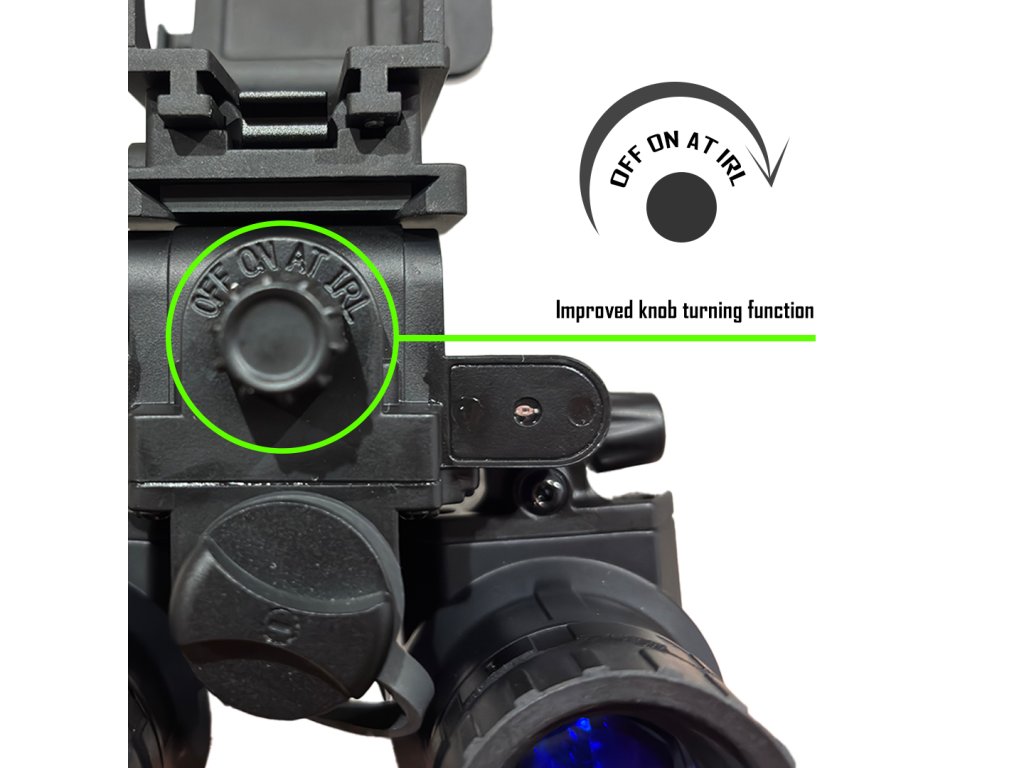

- Features an easy to operate turning knob system for easier manipualtion
Housing is made of high intensity military standard polyamide and 7075 aviation aluminium and thus alloy can be applied to various severe environment.
Optics used are Lightweight Norinco MILSPEC
We offer you a option of disabling the bright light cut off function (Device in defaults automatically turns off when hit with a bright light)
Specification:
Magnification: 1x
Eye relief: 25mm
FOV: 40°±1°
Focal Length: 25cm – infinity
Parallelism of optical axis <0.05 °
Lens system 23mm F1,18
MTF 120lp/mm
Optical distortion 0,1% Max
Relative Illumination >75%
Coating Multilayer broadband coating
Range of focus 250mm-∞
Distance of pupil 20-45
Eyepiece aperture 9mm
Diopter adjustment 3+ / - 5
Off-axis 5-10mm
Eye distance adjustment range 50-80mm
IR 880nm, 20mW
Flip sideways turn off Yes
Dimension: 110x120x90mm
Low battery indication: Built in
Weight 490g (without battery)
Weight fully built with battery 560g
Battery type: Lithium battery (cr123x1)
External Battery Pack: 4 pcs CR123x4 external battery box
Effective Visual Distance 300m
Operating Voltage 1,5-6V
Working Temp: -40℃ - + 55℃
IP Rating: IP67

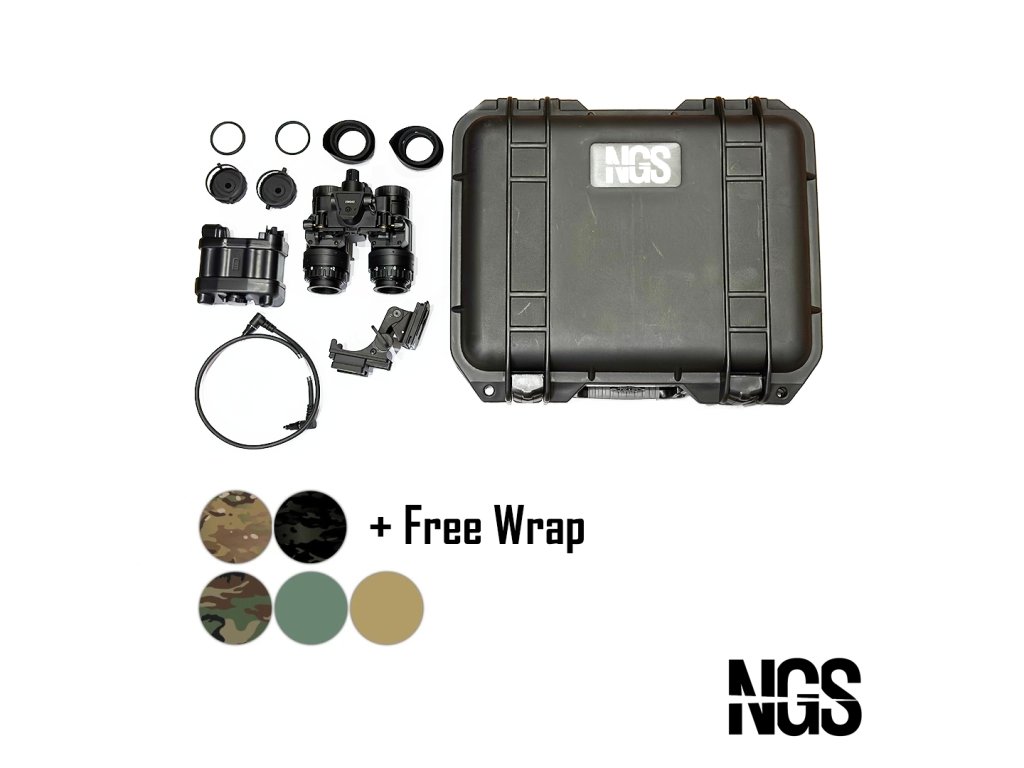

Package contains:
Hard case
Battery pack with cable
Eyecups
Dovetail Mount
Free Corudra Wrap Ranger green, Coyote, MC, MCB, Woodland (Add a note which one you would like)
